Full Details

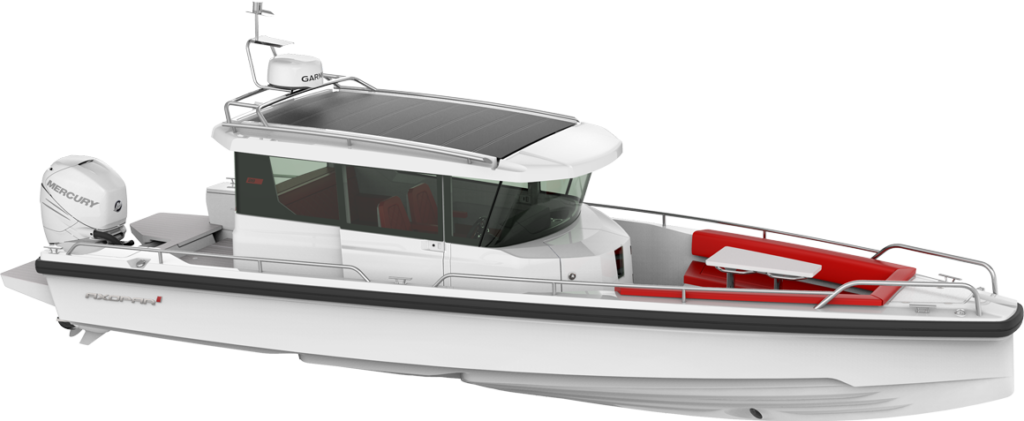

AXOPAR 28 Cabin

Back to Axopar
Model Year2023
Hull MaterialGRP
LOA9.18m (30' 1") inc. Bathing Platforms
Beam2.95m (9' 8")
Max Draft0.8m (2' 8")
Engine(s) MakeMercury
Engine(s) Power200 - 400 hp
Cruising Speed30 Knots
Max Speed32-46 Knots
Fuel280 Litres

Boating people know the weather can be an unpredictable force and being caught out in a rain storm, or being buffeted by strong wind for hours on end can be tiring.

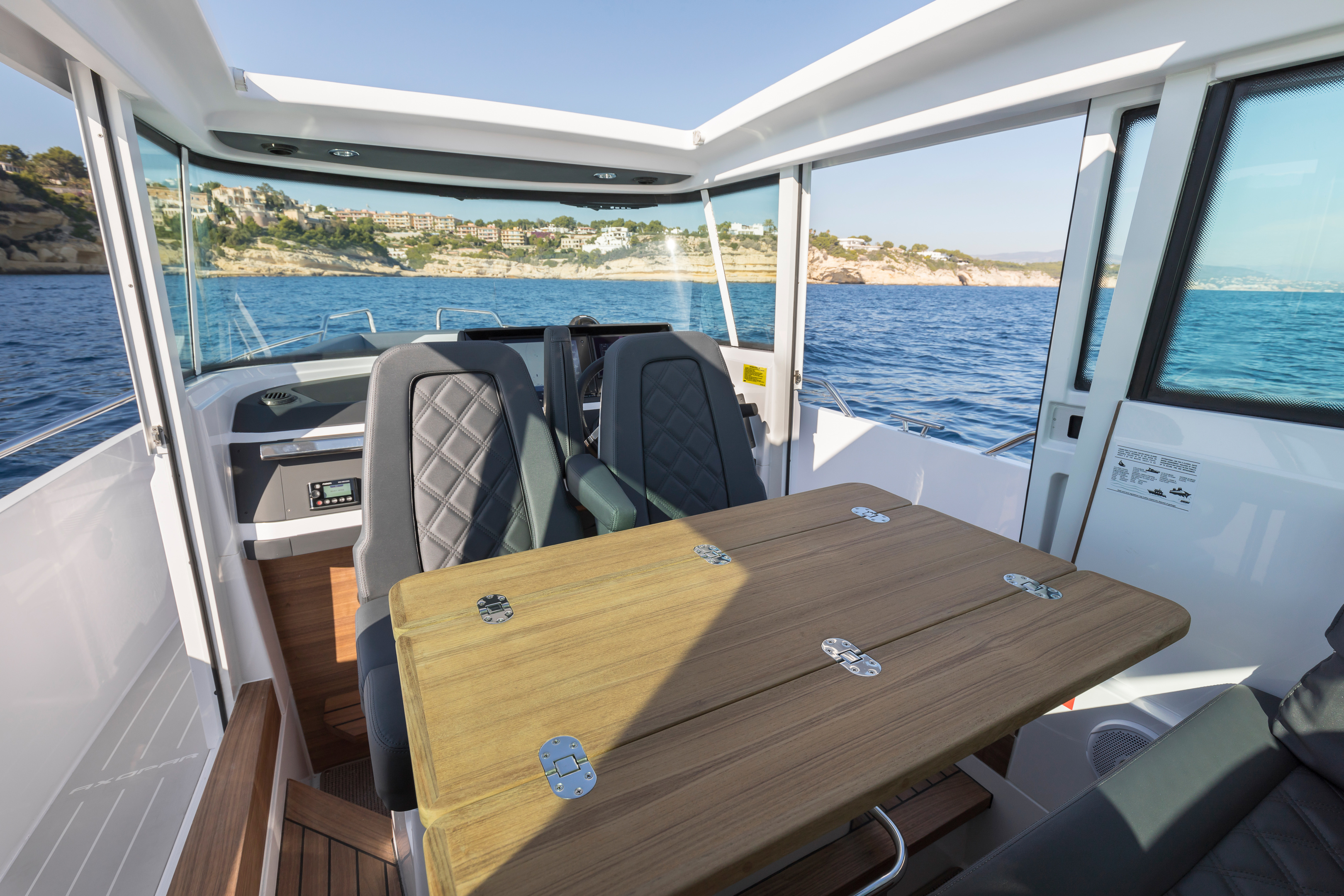

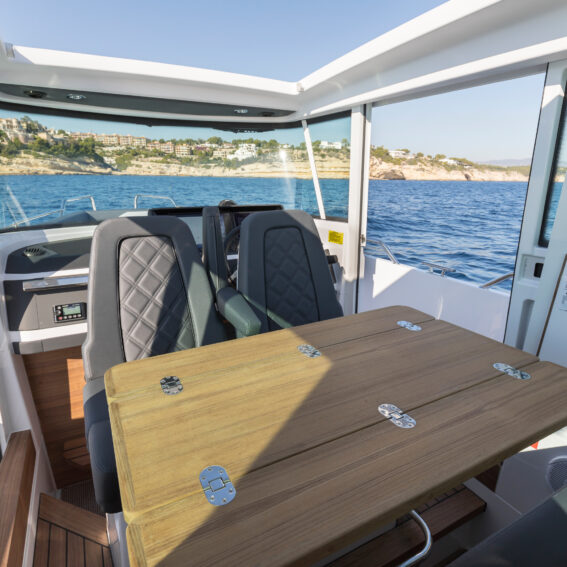

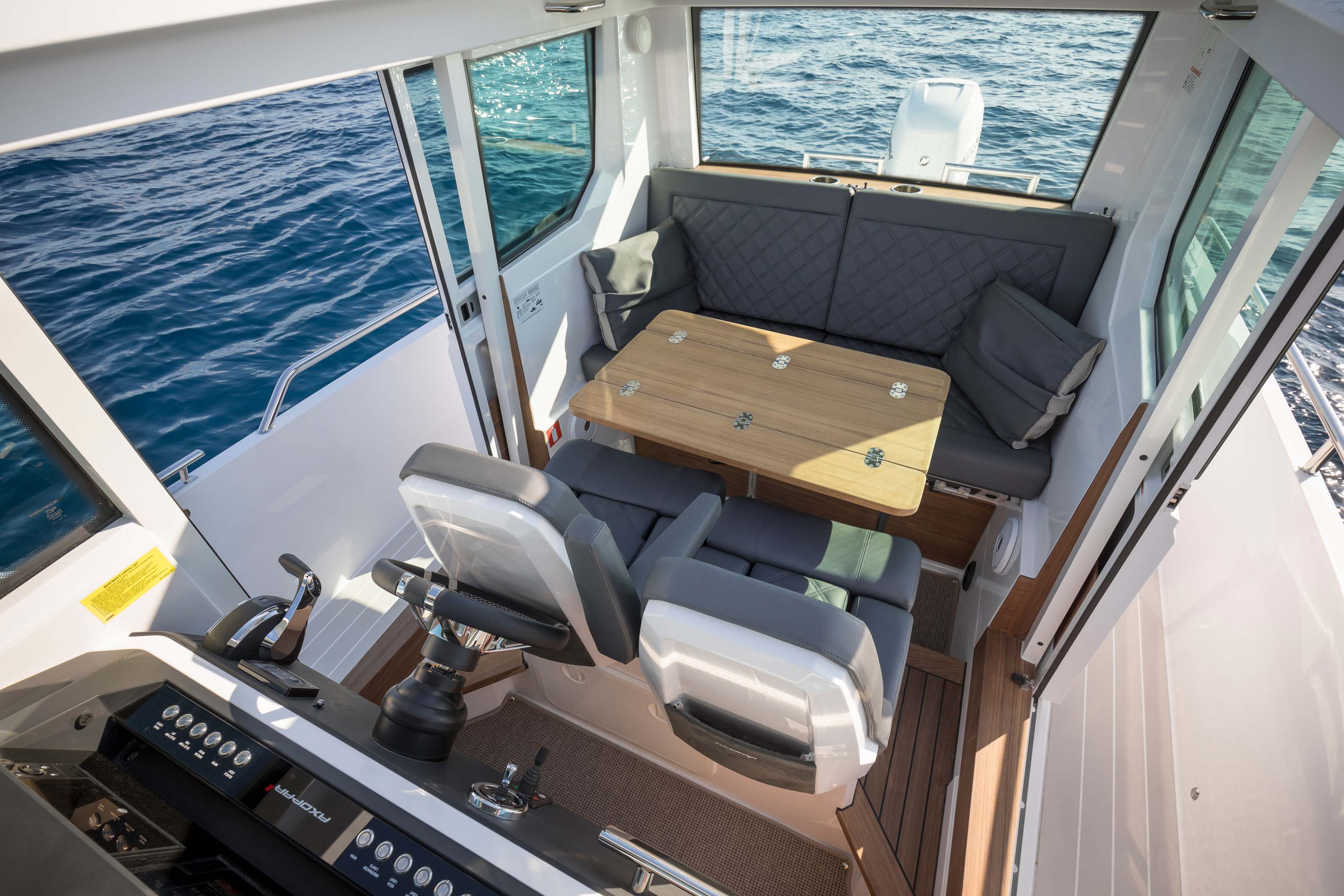

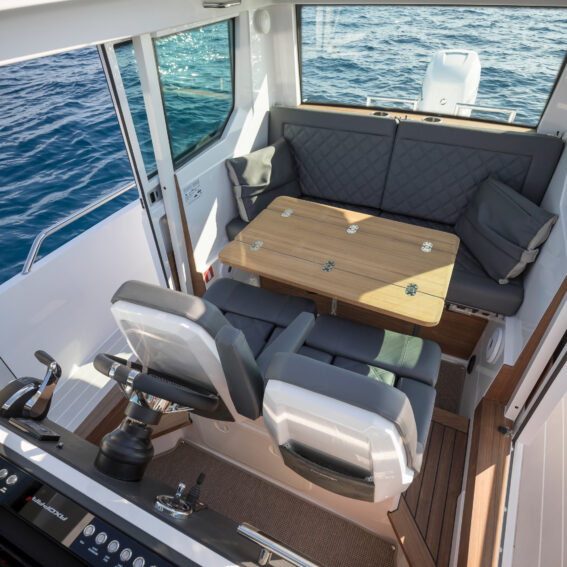

With capability of seating up to five people within a bright and airy, full weather protected environment, there’s ample incentive for an owner and guests to spend not just a few hours onboard, but several days and even weeks enjoying their Axopar Cabin version to the full.

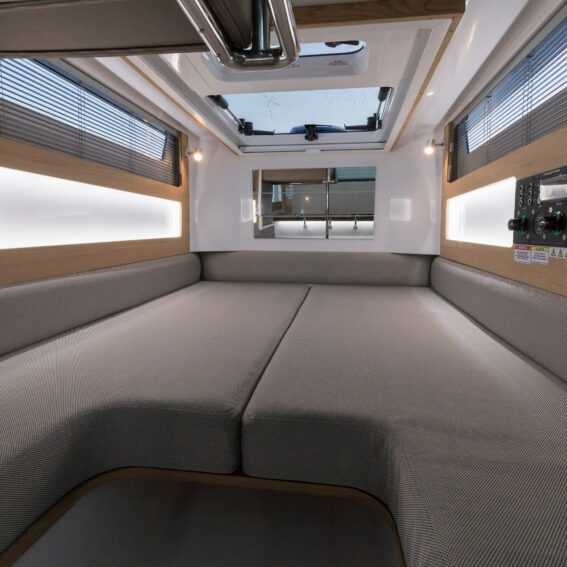

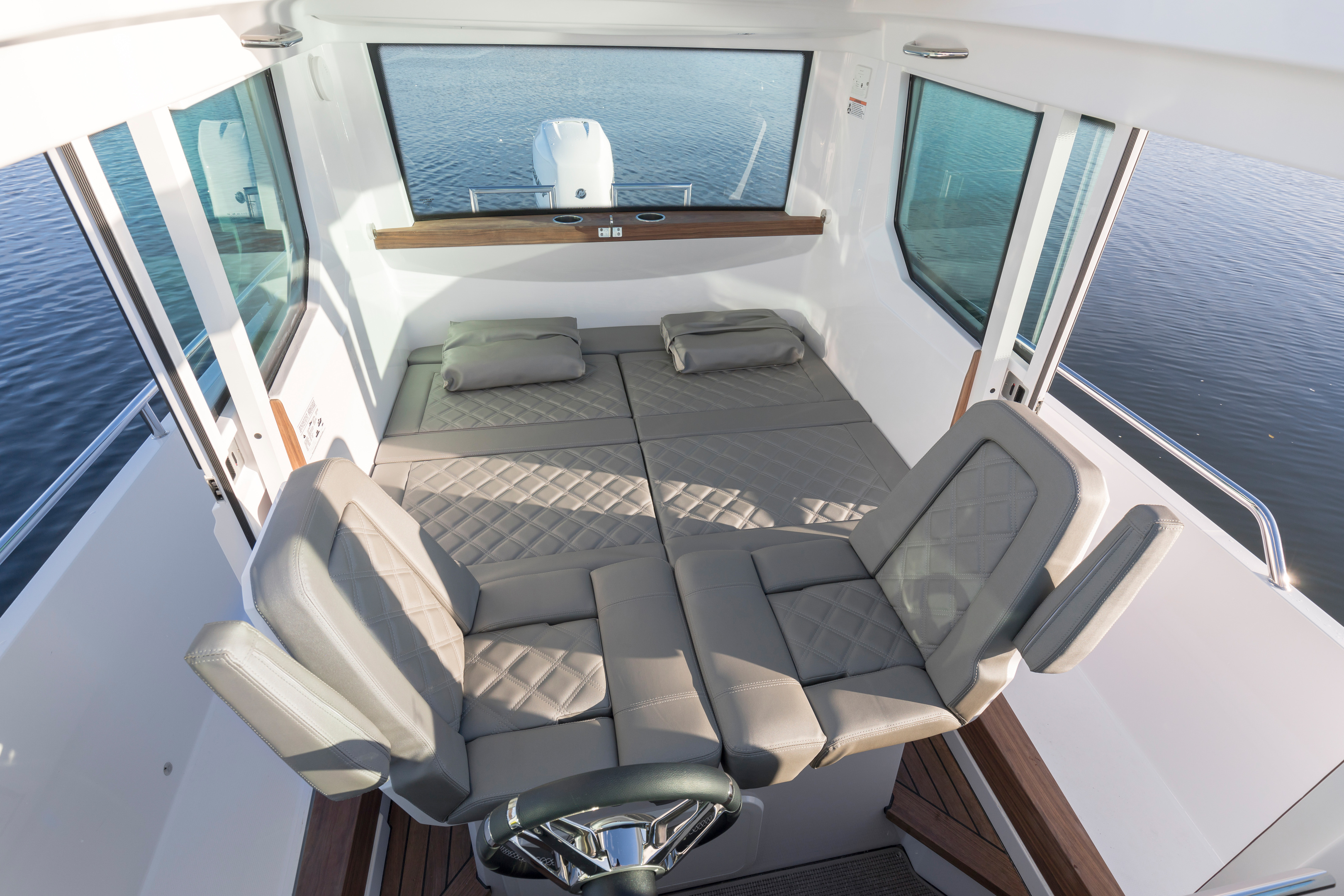

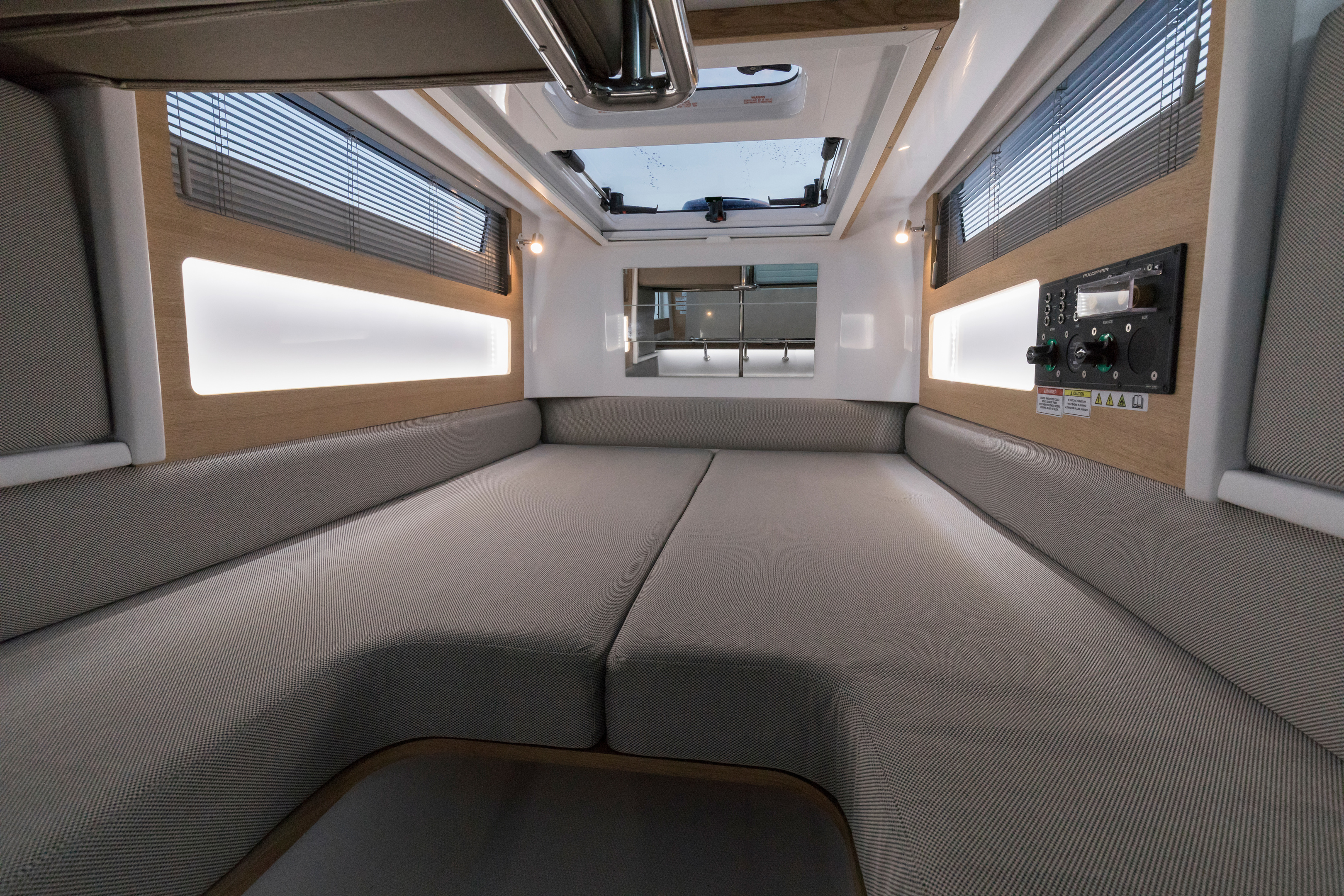

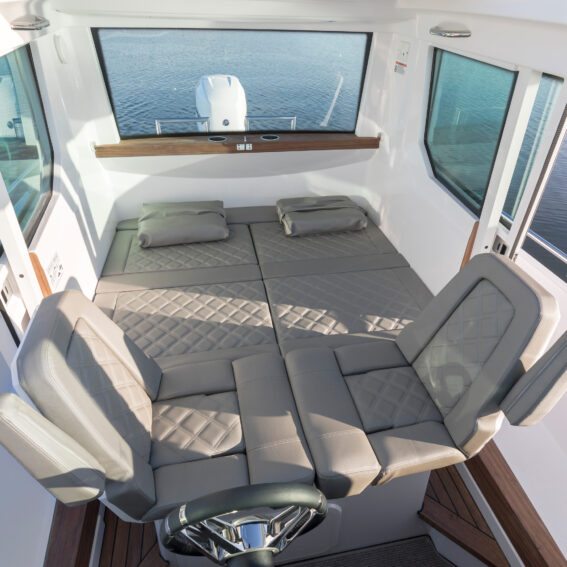

The cabin does offer occasional sleeping possibilities for one or two, but customers find the Aft Cabin option is an even better solution for genuinely comfortable, dedicated overnight stays and drop-of-the-hat weekends away will soon become your boating norm.

Above the cabin there’s a full-length Webasto manual sliding canvas roof that loves to be thrown open at any time and large, side-opening doors either side, mean there’s natural light and ventilation always readily to hand.

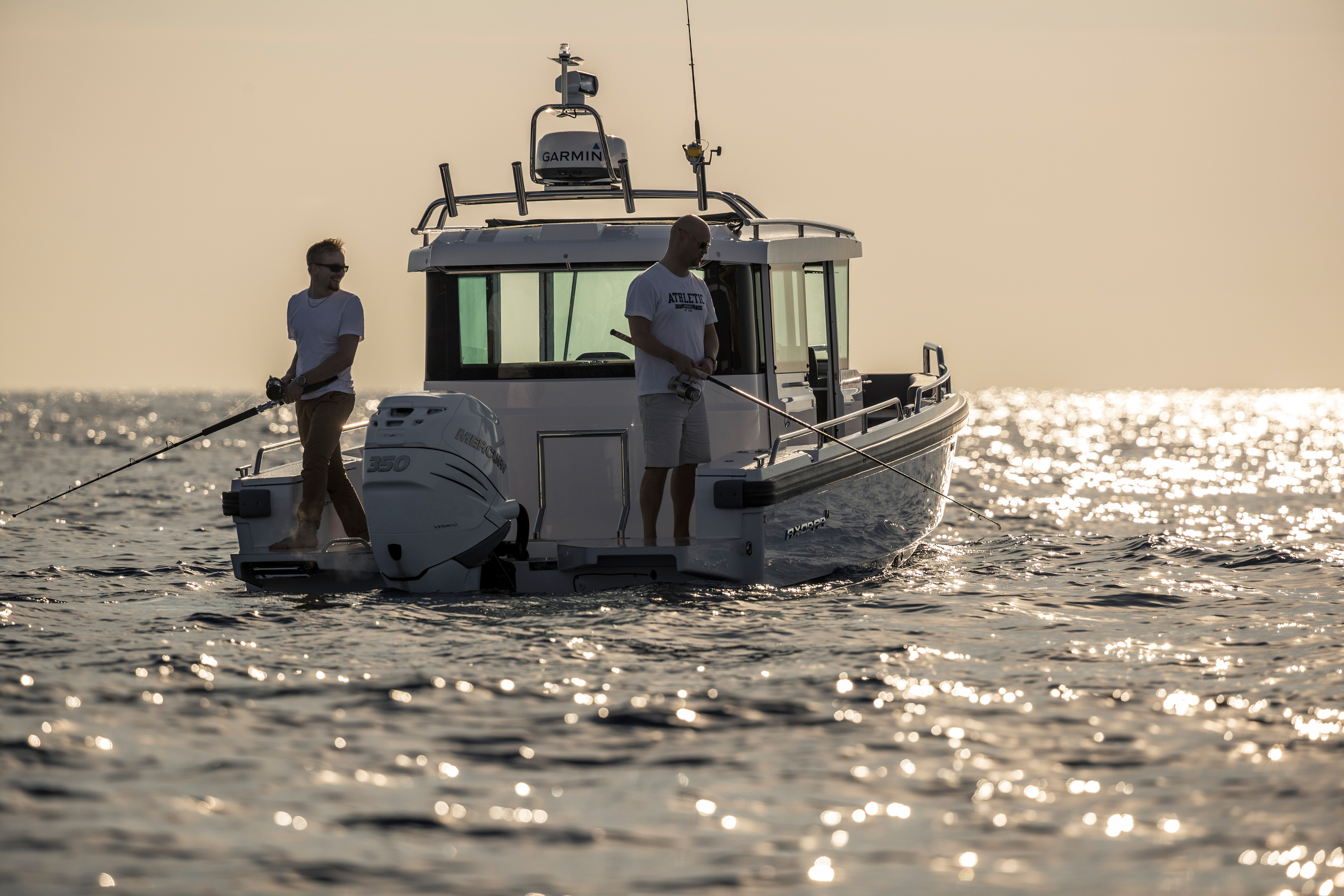

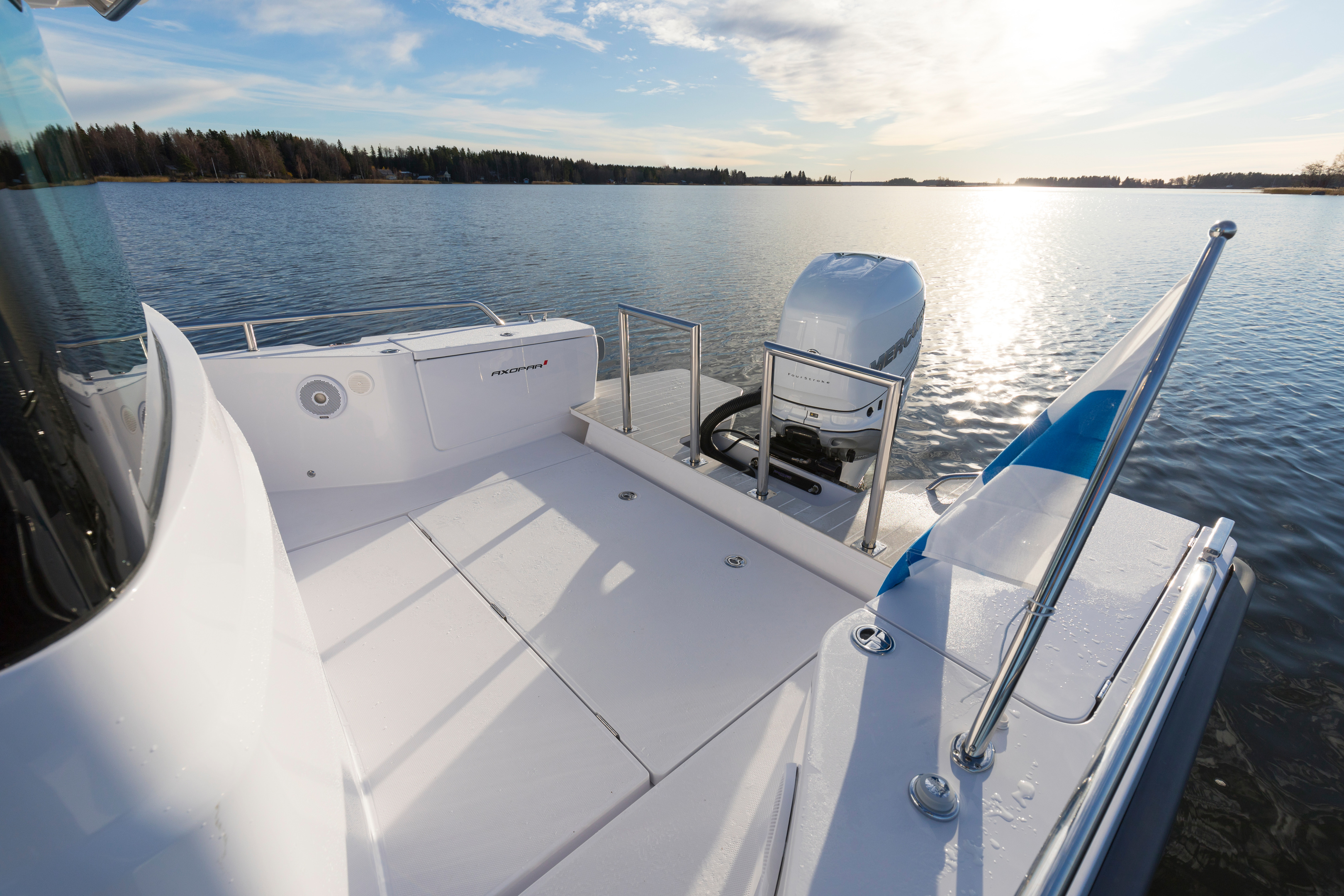

Versatile by design, the walkaround side access and aft-deck in standard form is a large, flat and practical space that works well as a home for fishing, or water-sports activities and such-like.

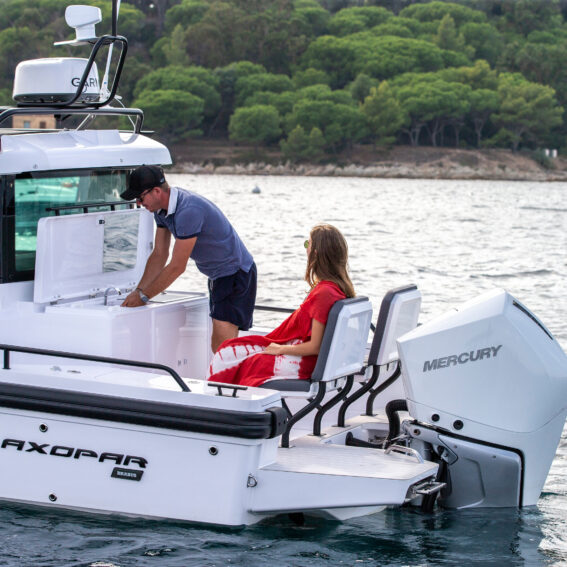

As with other models across our range, the aft-deck can be configured either with, or without, an additional rear-facing bench seat and storage box, or for all-day hospitality, our dedicated drinks serving area and wet-bar module option is a must.

Go further and stay out longer with the Axopar Cabin.

01803 203800 | torquay@axoparlondongroup.com

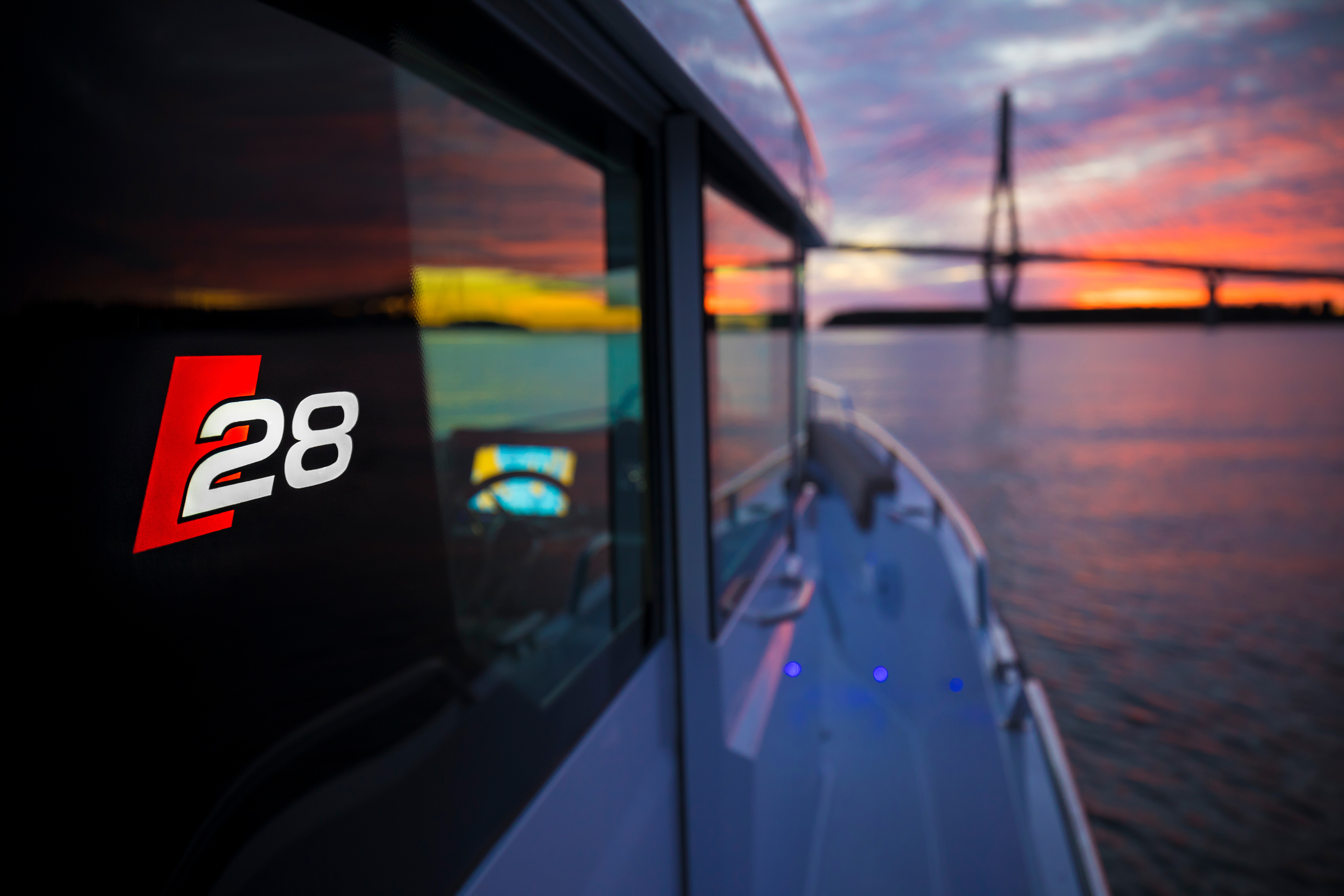

HULL AND DECK: 130mm added length and 50mm added width, raised hull sides by 80mm, softened spray rails and rounded keel shape. New stringer system based on 37 range. Improved shape and water deflection on bow thruster flanges. Vinylester resin for the first coat of the hull in GRP material, New anti-skid pattern on deck and deck hatches, enlarged service hatch on fore deck, Revised large bumper list with improved cushioning in grey color, Wraparound windscreen and side windows in toughened 6mm glass and tinted light green with optional illuminated 28 designation, Pulpit and cockpit handles in hand polished stainless steel, 6* Stainless steel cleats aft, mid and bow, Fender storage on aft Deck SB and Port sides, Widened bathing platform with integrated Esthec Platinum decking with and telescopic bathing ladder, Self-draining deck with large diameter scuppers, Integrated engine bracket for outboard engines. Axopar 3D lettering on hull sides and model designation on side glasses.

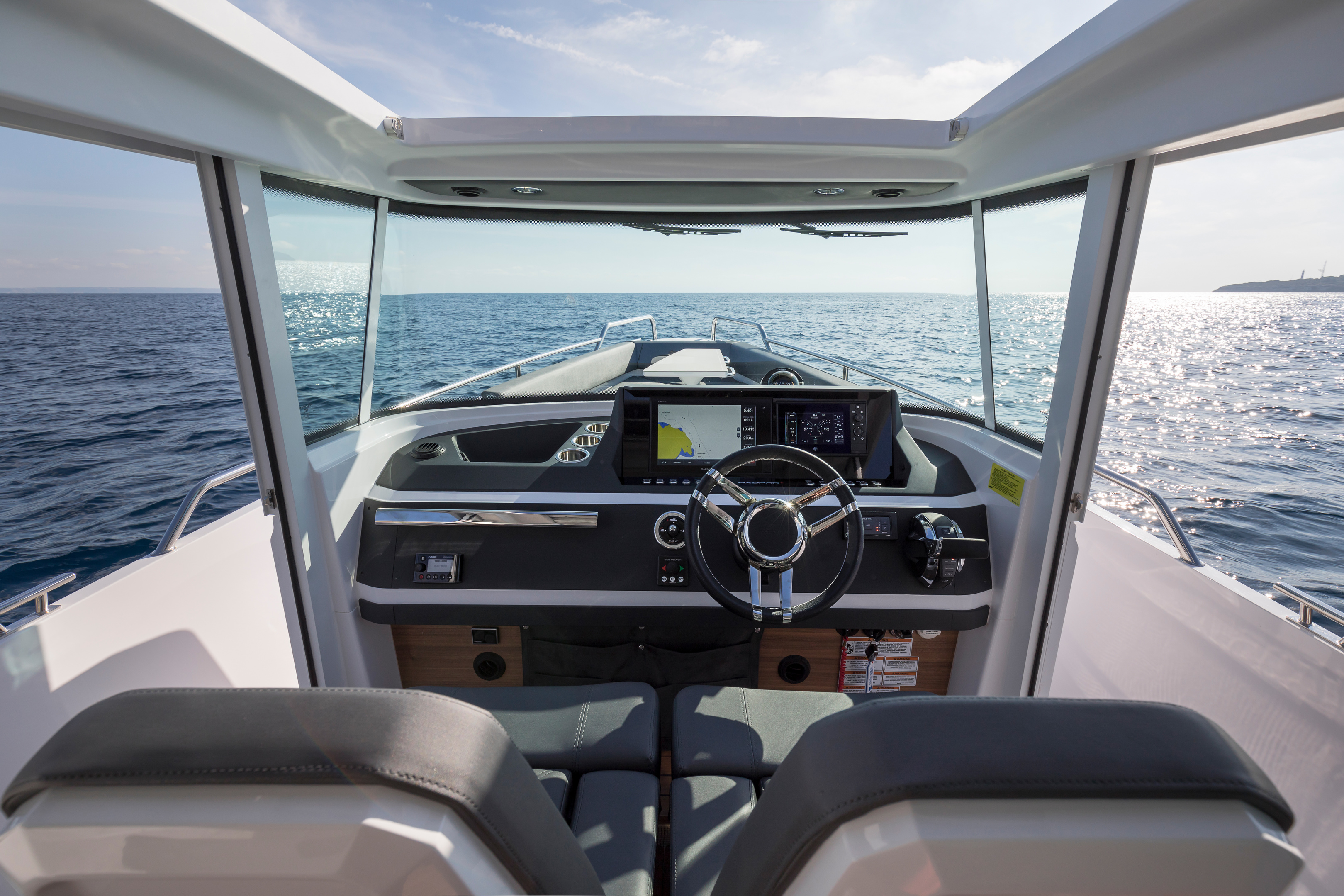

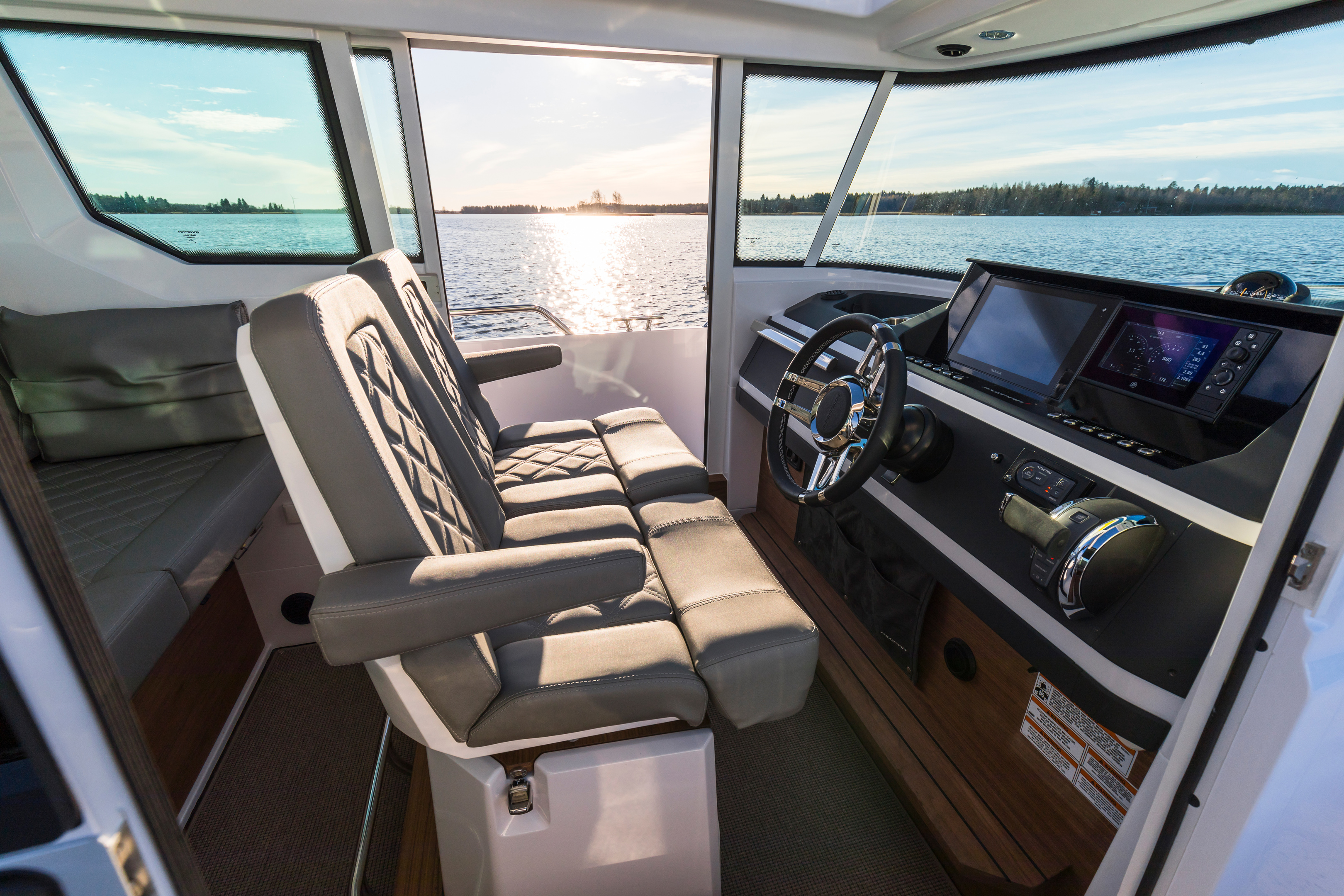

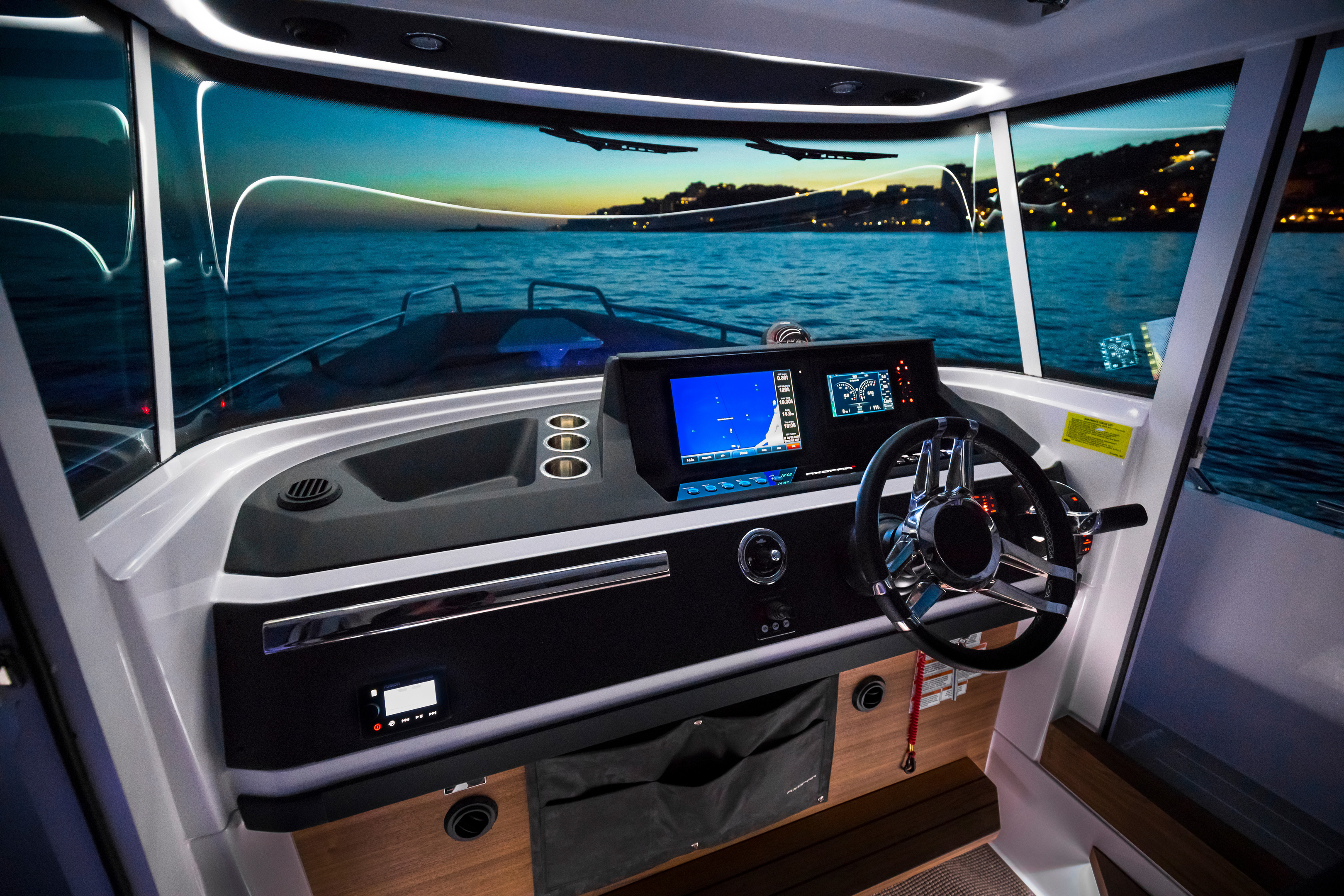

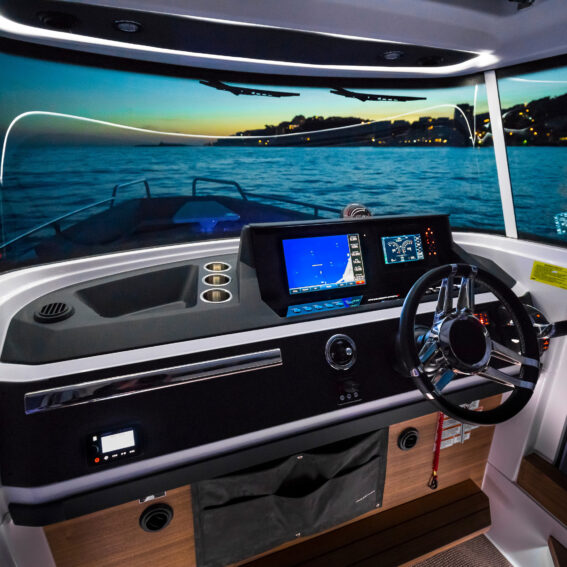

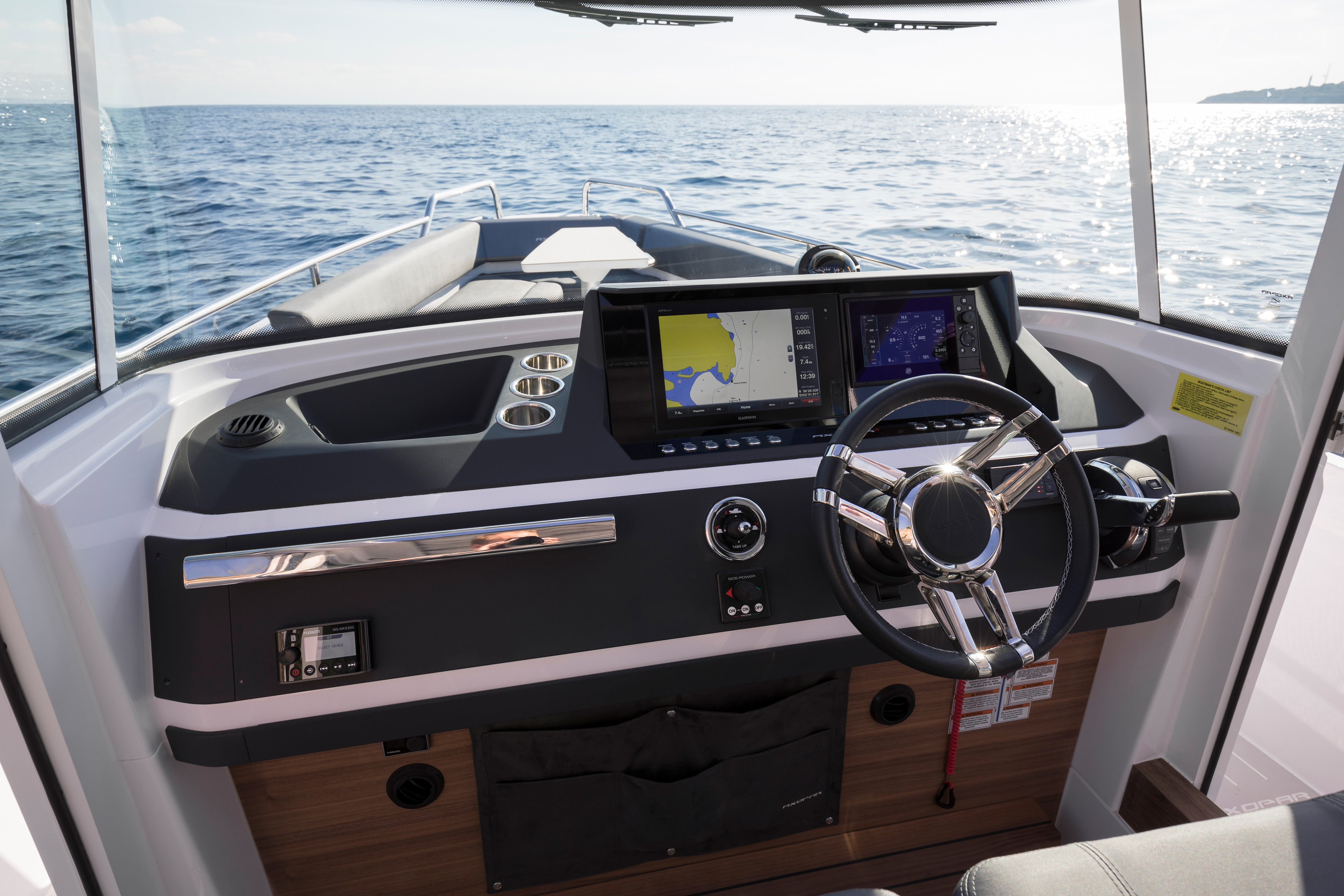

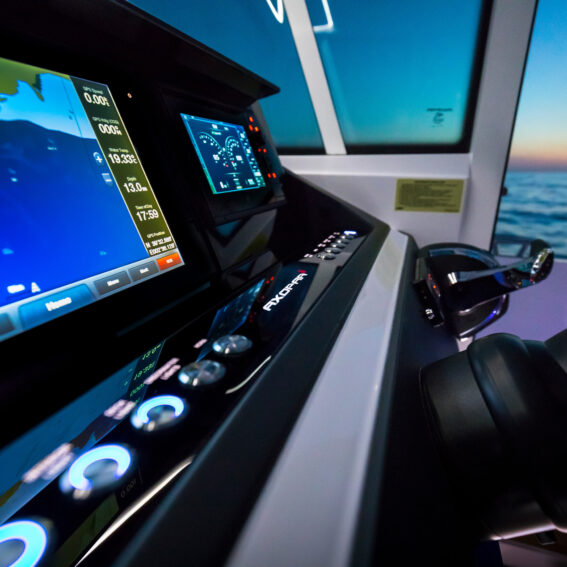

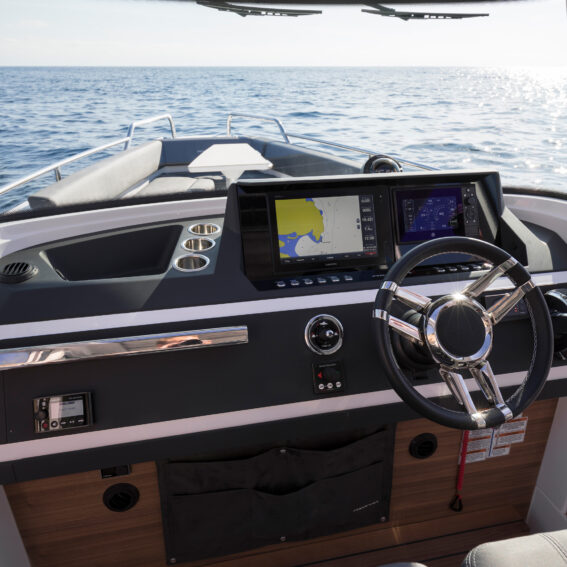

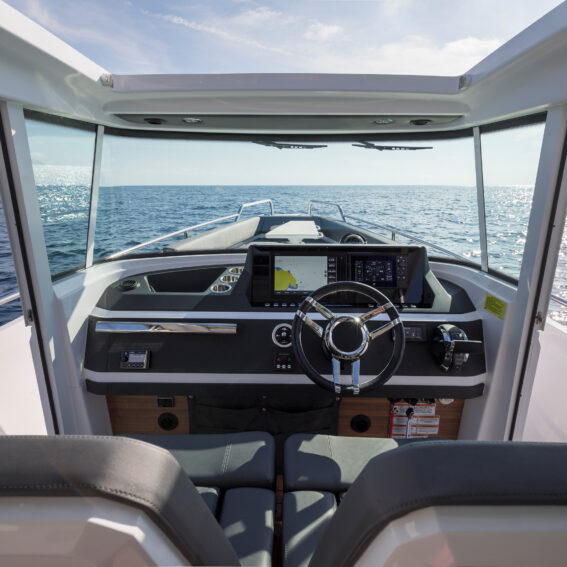

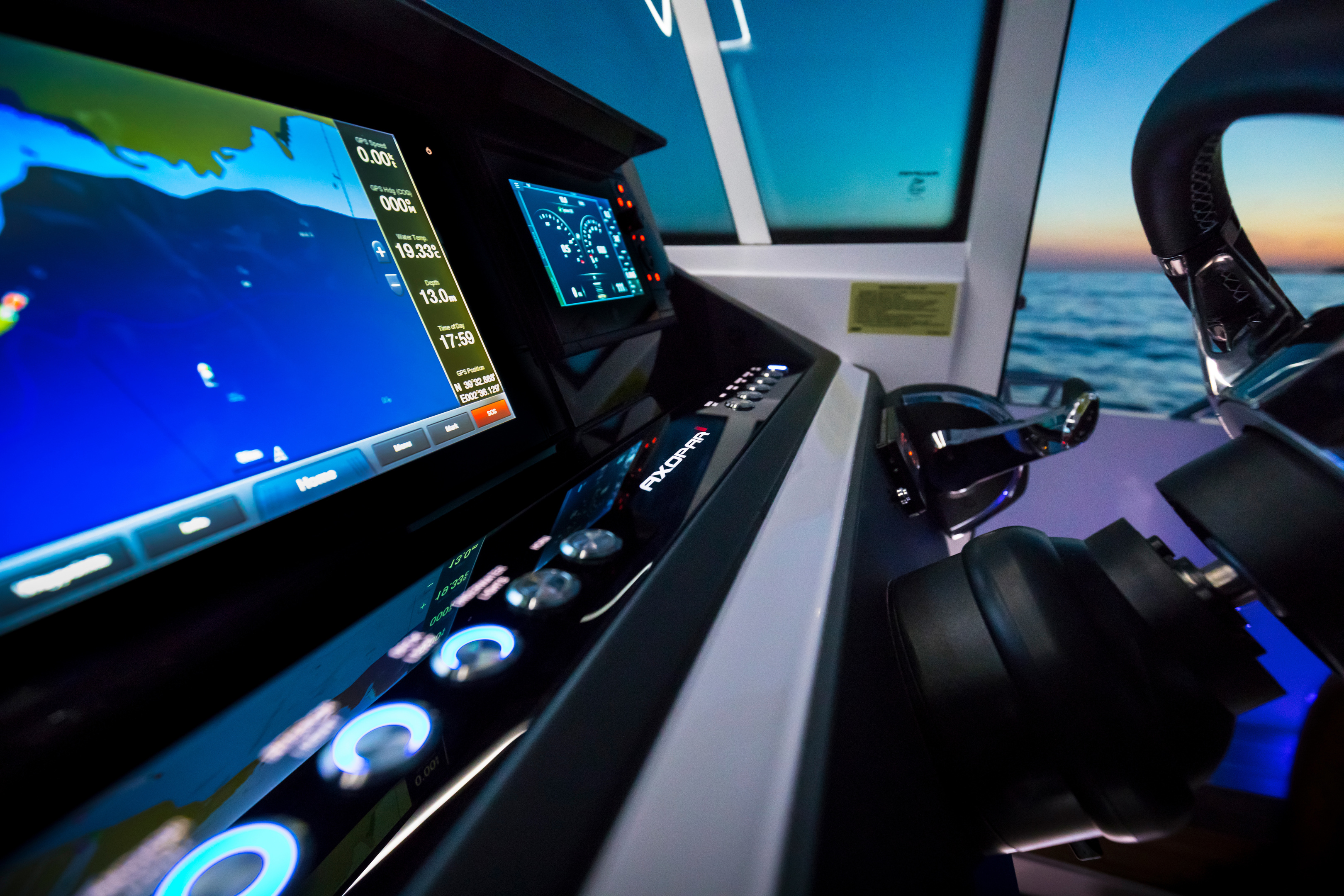

HELM CONSOLE: Soft Touch painted dashboard and console panel, helm panel with passenger side grab rail, Illuminated push buttons and Axopar logo on glass panel, high-gloss helm exclusively in conjunction with factory-installed GPS and Mercury Pre-rig, Leather steering wheel with Axopar logo, 2 x cup holders, 12V power outlet, Fabric document pocket on console wall, Walnut foot rest.

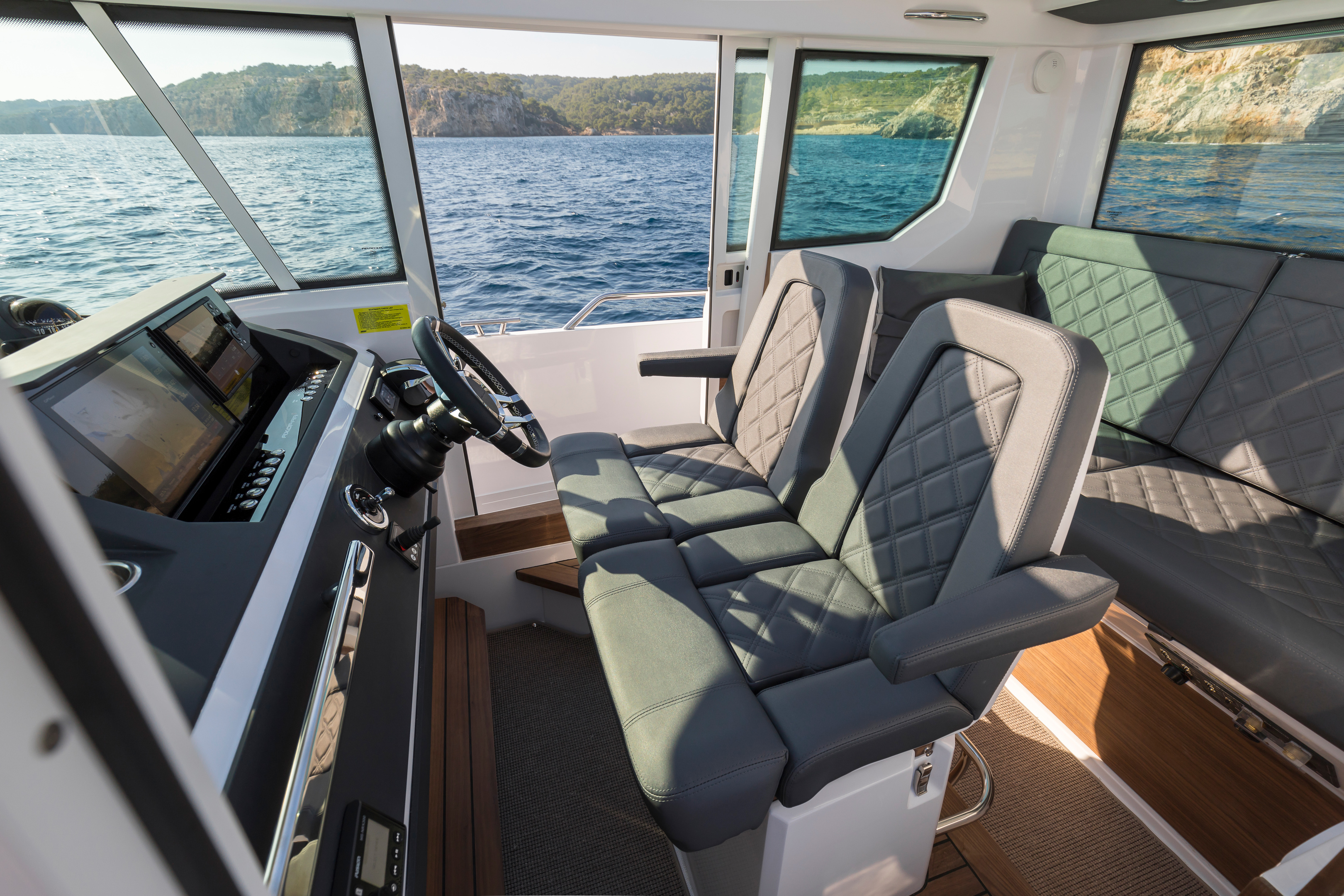

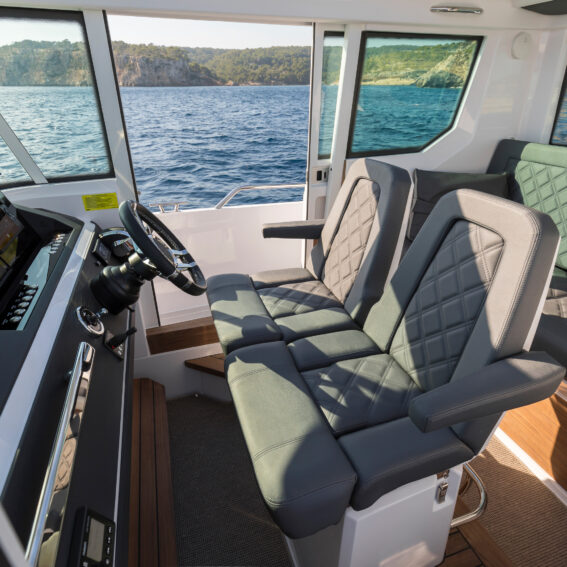

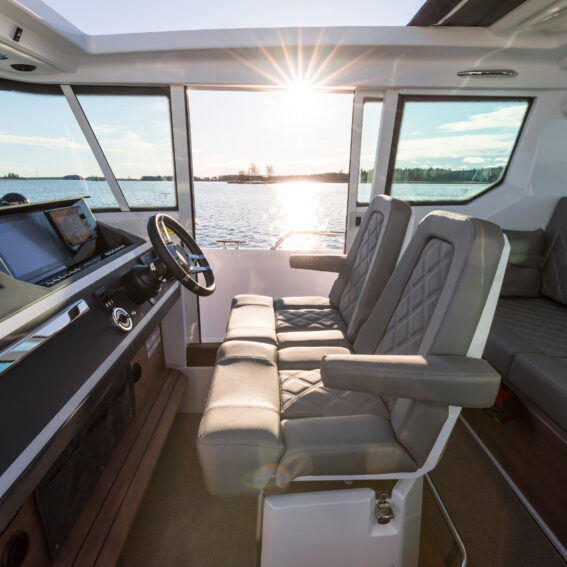

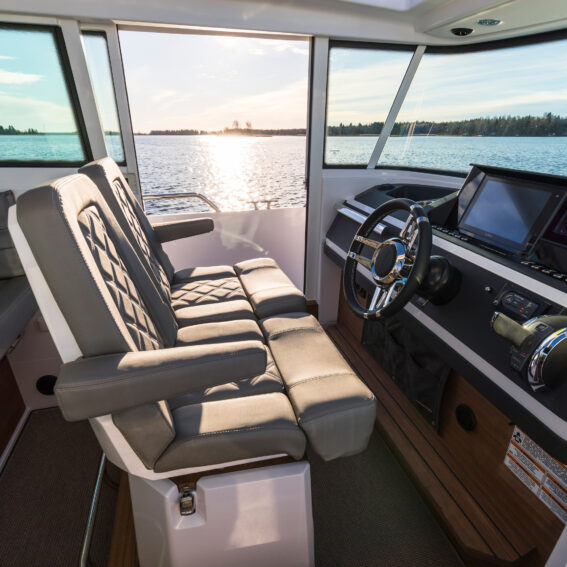

LAY-OUT AND SEATING: Walk-around deck with sociable reshaped L-sofa on foredeck and open aft deck area with enlarged storage under deck with integrated locker for windlass / bow thruster battery, Lowered floor level in cockpit for driving while standing, Driver and co-pilot seats with flip-up front / swivel function and outer armrests, Storage locker under co-pilot seat, Silvertex Sterling as standard upholstery fabric with optional Storm, Champagne and Turquoise.

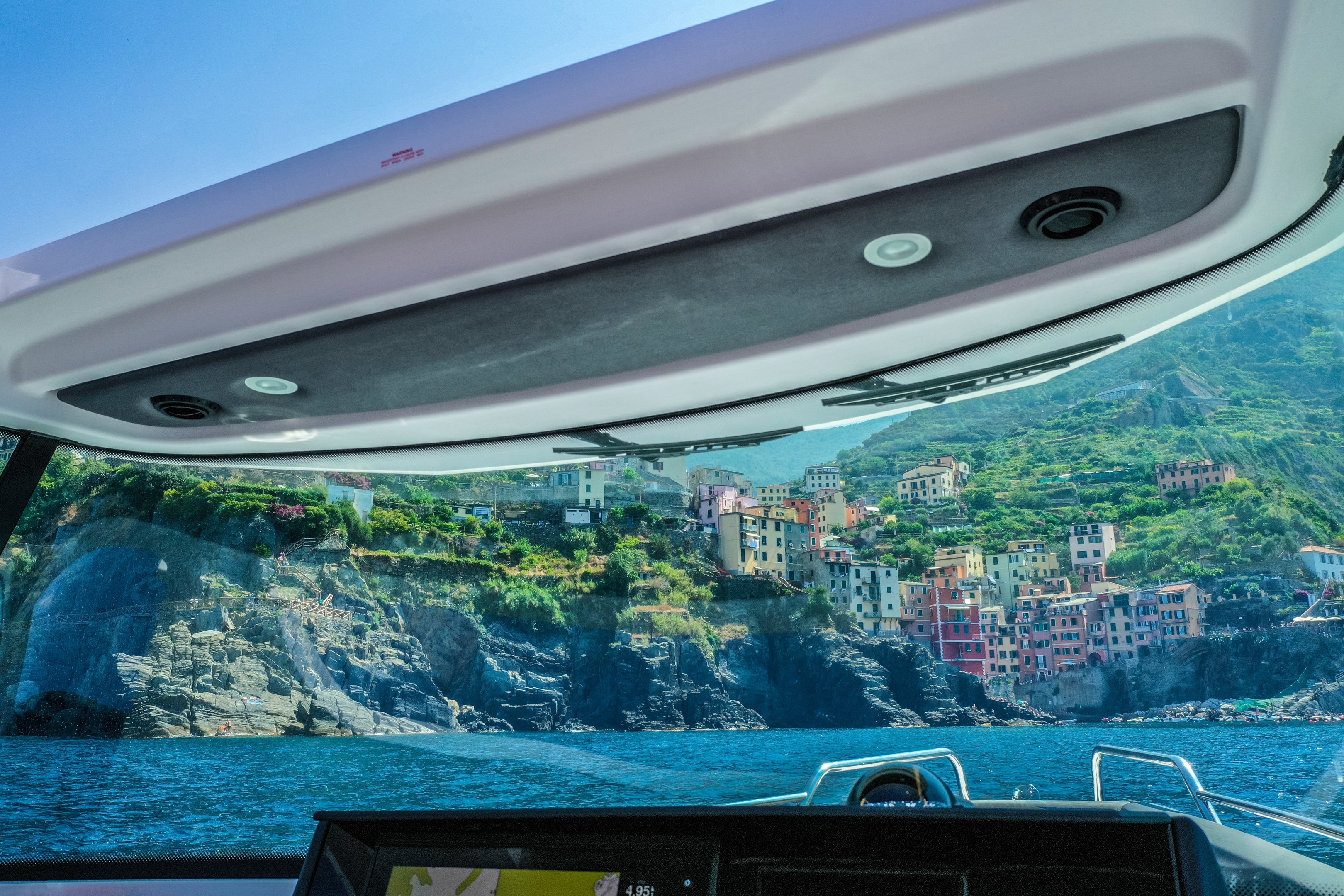

ELECTRICS: Main control panel with twin battery switches and automatic fuses for direct supply and 12V outlet located in cockpit, Main fuse panel with automatic fuses and 12V outlet located in Deck stowage / toilet area, Led roof spot lights 4pcs, 2 LED spot lights in Deck stowage / toilet, Light mast with anchor light and integrated loops for courtesy flags, Integrated LED navigation lights, Windscreen linked dual wiper arms, Electric bilge pumps x 2, Signal horn. Carbon monoxide detector in cabin, Fire alarm in cabin, Fuel sensor Vema

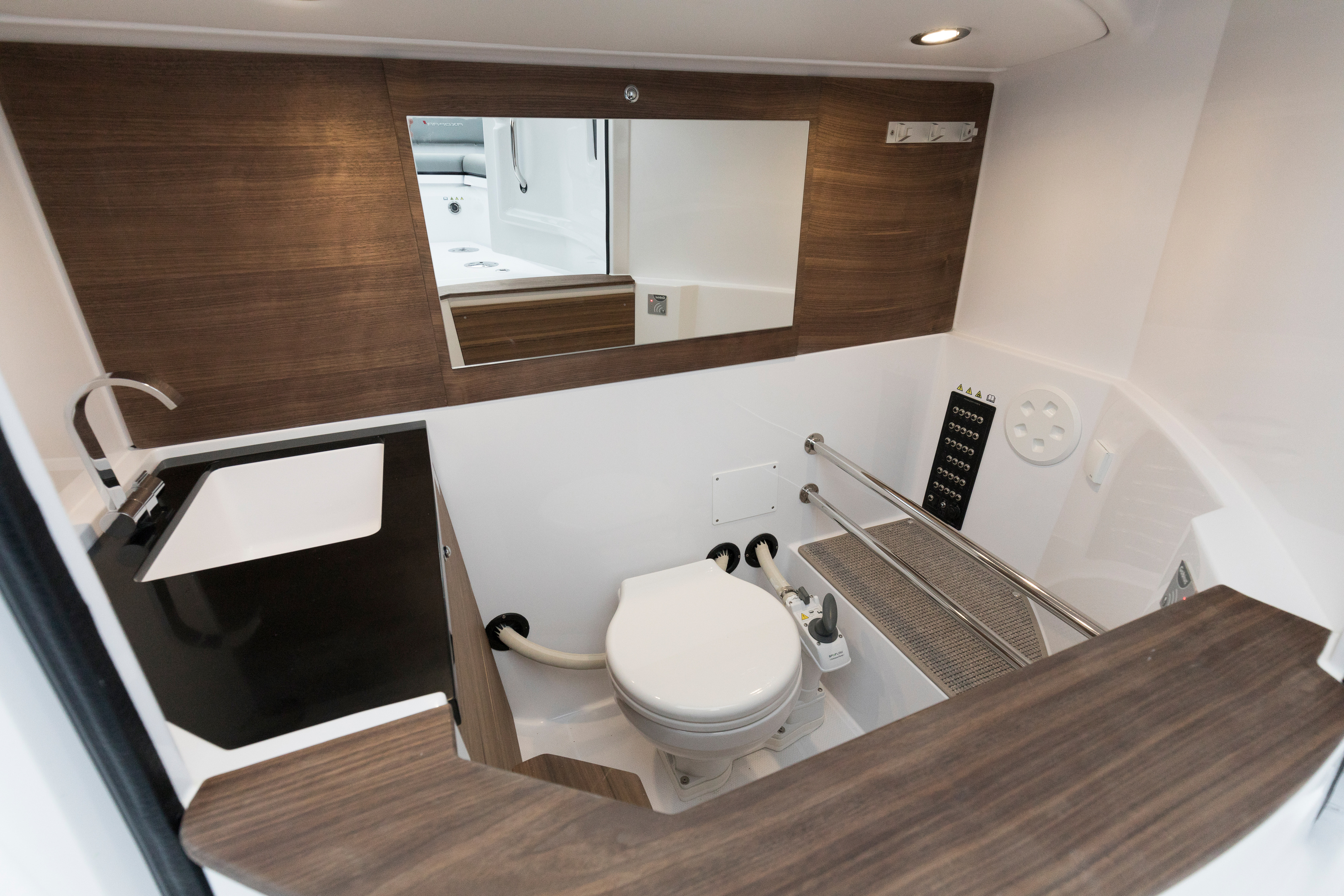

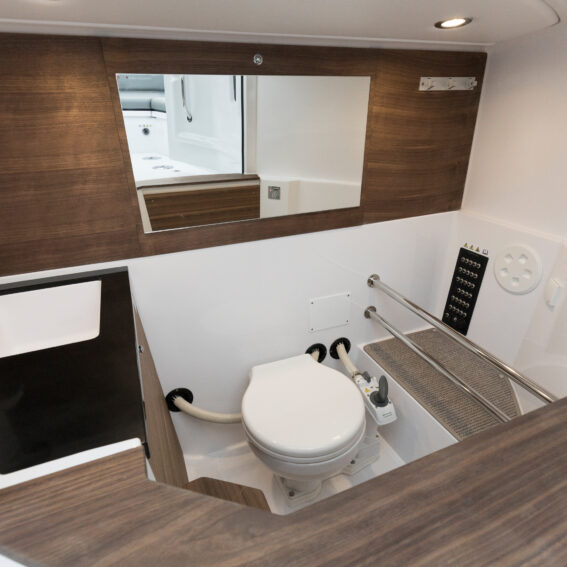

FRONT DECK STOWAGE AREA / TOILET: Enlarged stovage area in center console / optional toilet with raised interior finish with headliner and toiled door in double mold integrated window, warnished oak back panel with integrated mirror

OTHER: Aluminium fuel tank 280l, 2 kg fire extinguisher, Manual bilge pump, Harbor cover for canvas roof, Flagpole.

01803 203800 | torquay@axoparlondongroup.com

• Seawater flush, 40l septic tank, macerator, overboard discharge and dockside pump-out,



• Esthec platinum complete exterior flooring in platinum colour with white caulking


• Mercury upgrade package, Active Trim, VV Mobile, TDS
• Pre Rig, Single, Mercury FourStroke L6 &V8 incl. VV502
• Pre Rig, Twin, Mercury FourStroke V6 incl VV502

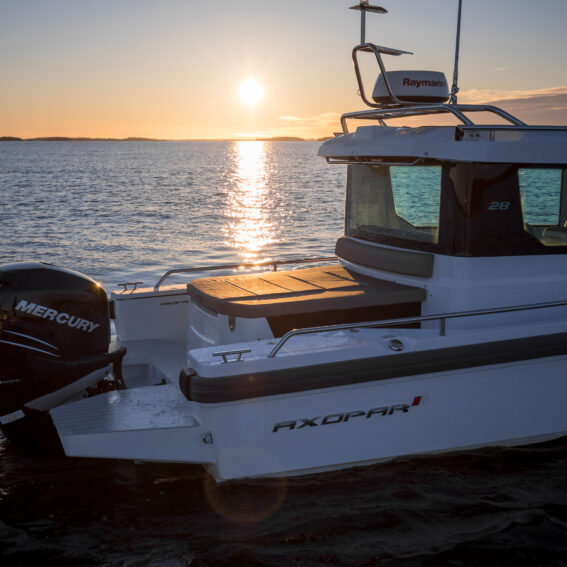

• Aft deck bench with stowage
• DayCruiser Aft Cabin
• Two Aft Deck Folding Seats, Silvertex
• Wet Bar Package

• BRABUS Line Colour Upgrade, Blue
• BRABUS Line Colour Upgrade, Grey
• BRABUS Line Trim Package

• Aft Deck Bench Cushion, Silvertex
• Interior, Silvertex Champagne
• Interior, Silvertex Storm
• Interior, Silvertex Turqouse
• Sundeck Cushions, Aft Deck, Silvertex

• Antifouling, Grey or White
• Bowthruster Side-Power
• Cooler, Aft Port Storage
• Electric Grill 230V
• Electric Windlass
• Electrical Roof System, Webasto
• Extended wood floor in cabin, Walnut
• Freshwater System with 45l tank
• Harbour Cover, Aft Deck, Red
• Heater Webasto
• Protective Window Covers, Grey
• Refridgerator, Aft Port Storage
• Search Light
• Shore Power 110V
• Shore Power 230V
• Shower On Aft Deck
• Sun Shade with Stainless Steel suports for fore deck
• Table In Cabin, Teak
• Targa Arch With Rodholders & Roof Rails
• Targa arch with roof rails, BRABUS Line, Black
• Targa Arch With Side Rails
• Top Loaded Refigerator, Dometic
• Trim Tabs with Joystick
• Underwater Lights
• Water ski frame

• Chartplotter Garmin GPSMap 1222 Touch
• Communication Garmin VHF 115i
• Intelliducer
• Quantix5 Watch With Axopar Logotype
• Radar GMR18 18HD+
• Sonar Module Garmin GSD
• Twin Chartplotter Garmin GPSMap 1222 Touch

• Audio Upgrade 1.
• Audio Upgrade 2.
• Control Unit For Fustion System
• Fusion Entertainment System

01803 203800 | torquay@axoparlondongroup.com

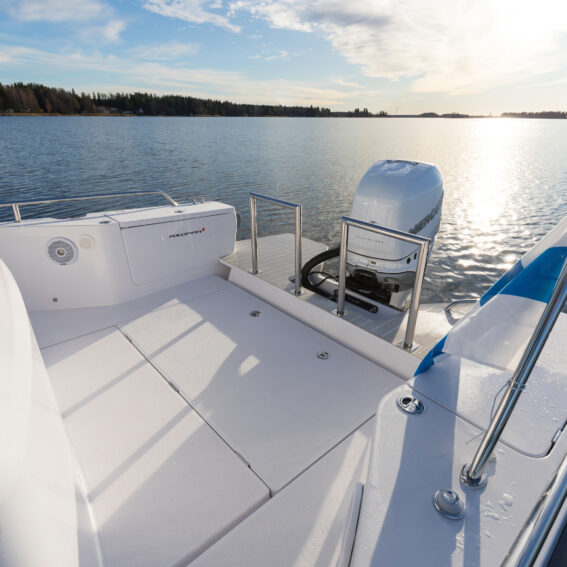

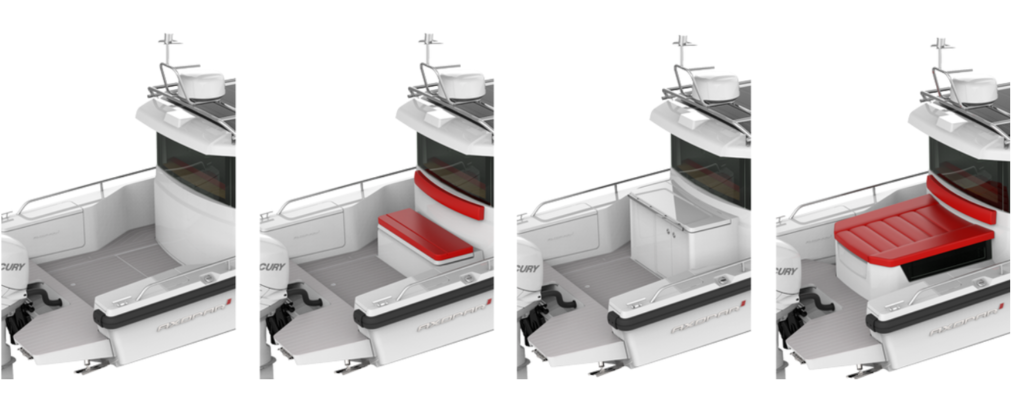

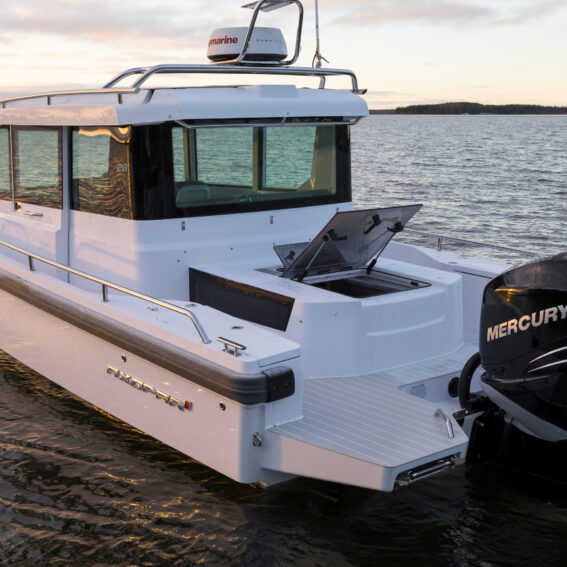

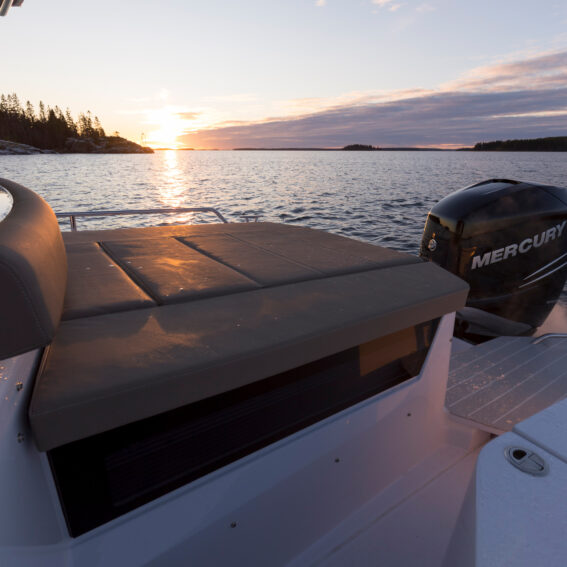

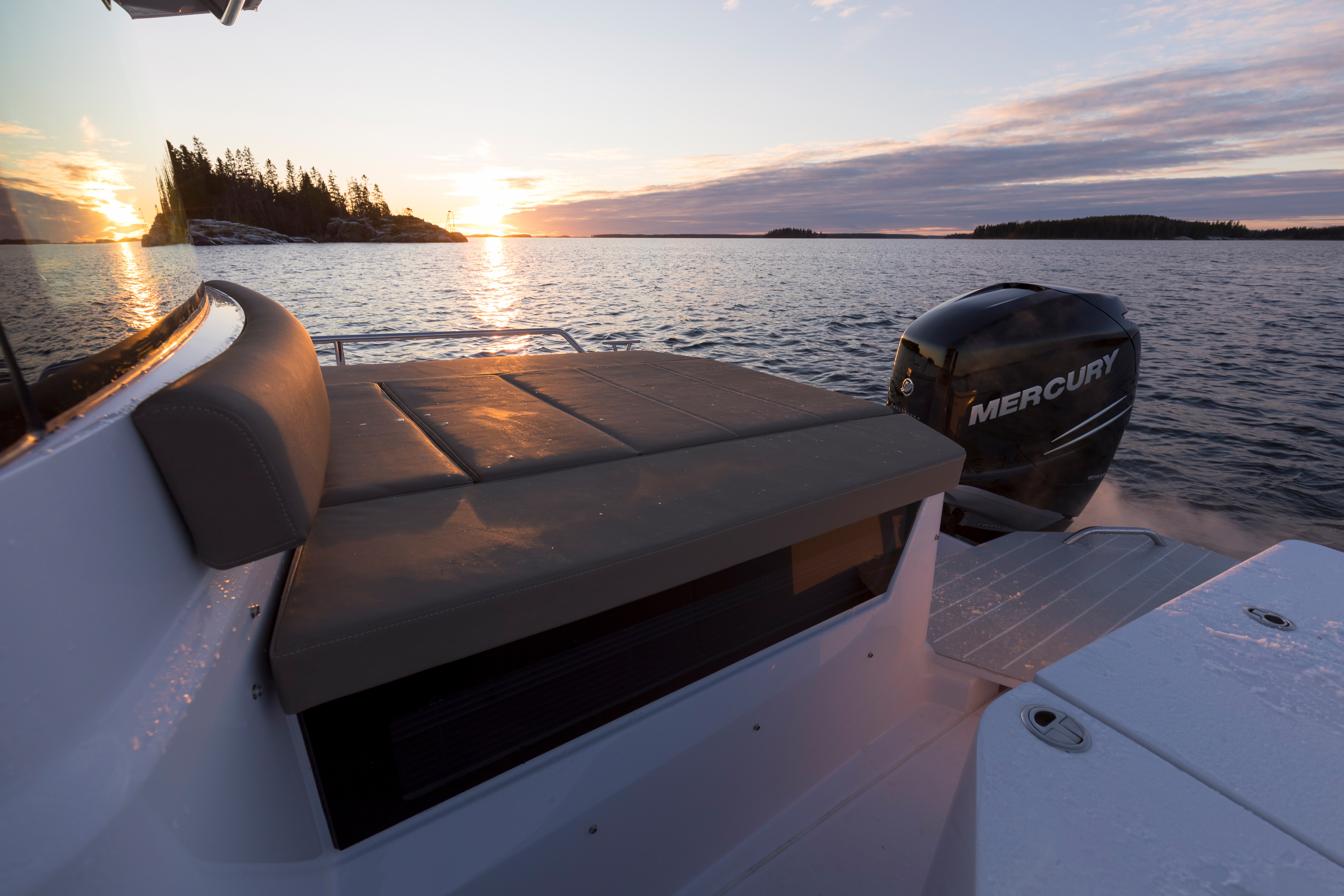

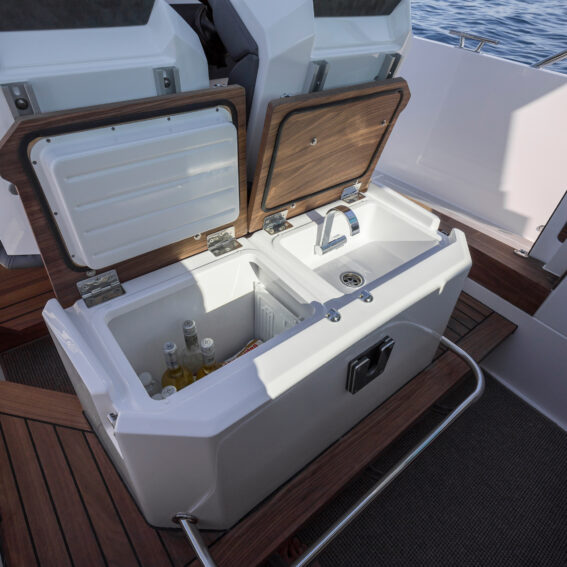

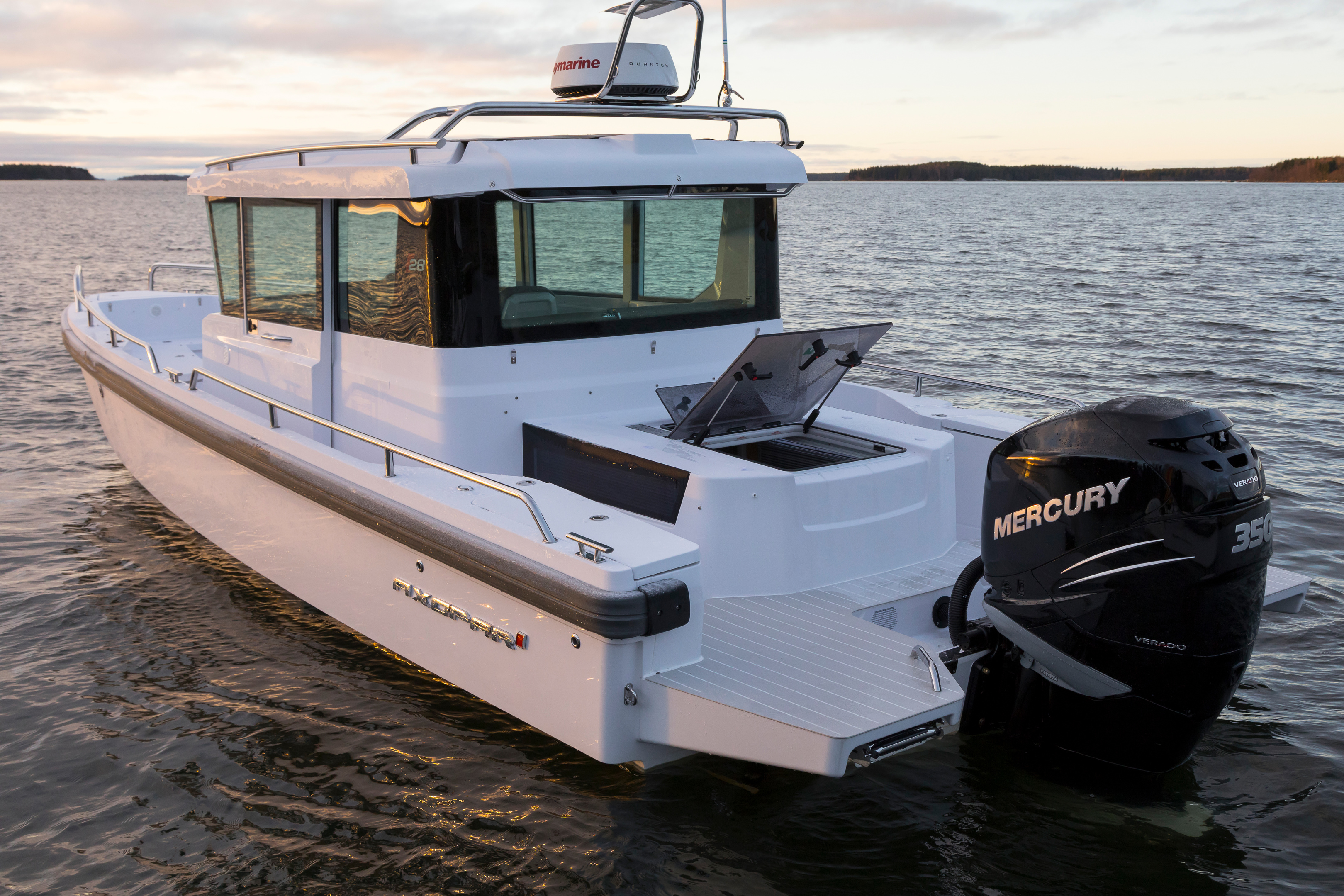

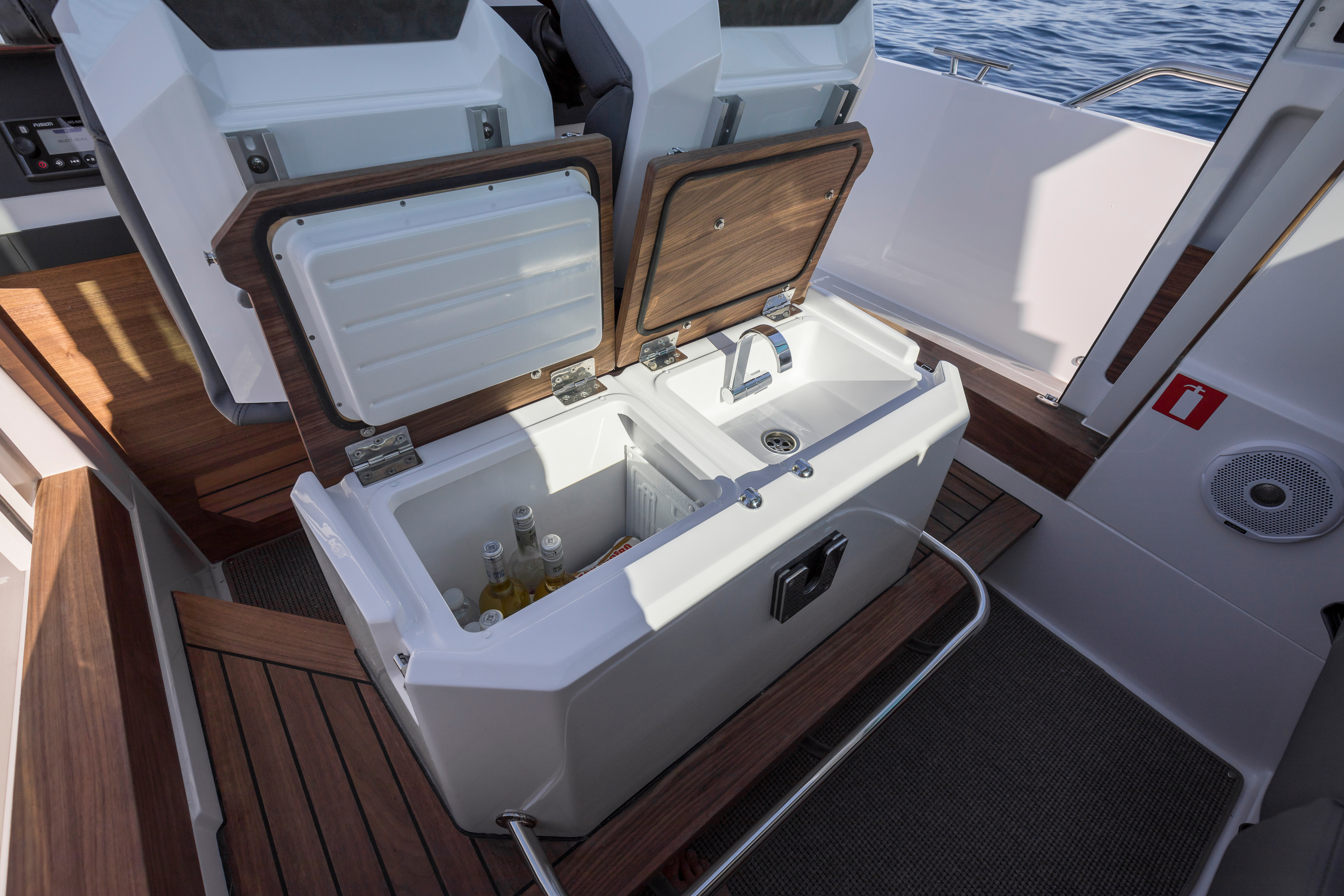

The Axopar 28 Cabin comes with a spacious open aft deck with a large stowage hatch in the floor as standard. It can be equipped with an optional bench/storage box, a wet bar module with refrigerator and sink with faucet or a daycruiser aft cabin which sleeps 2 persons.

01803 203800 | torquay@axoparlondongroup.com

The model year 2020 28 foot models are available in the above fabric colours. Silvertex marine quality coated fabrics (left to right):  Champagne, Sterling, Storm and Turquoise.

01803 203800 | torquay@axoparlondongroup.com

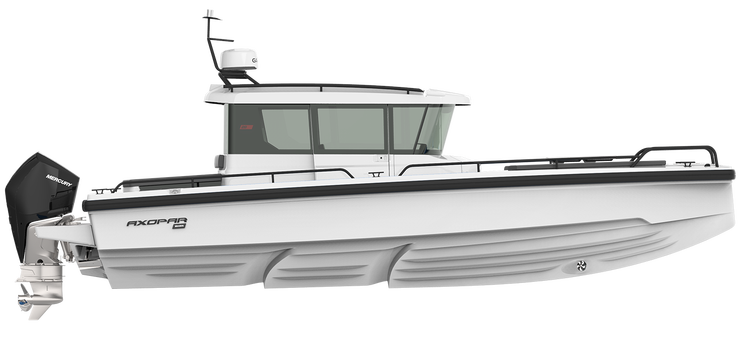

Style-conscious customers can now differentiate and characterize the look and feel of
a standard specification Axopar by ordering from our BRABUS Line Trim Package options,
adding value with discreet interior & exterior trim & styling enhancements.

Read More About the the BRABUS Line Package Here

01803 203800 | torquay@axoparlondongroup.com

Prices start from €46,660

Click here to configure your Axopar 28 Cabin

Download and save your personalised configuration. Then contact us to begin your own Axopar journey.
